Mist Cooling Fan

You are here:
  1. Home
  2. Mist Cooling Fan

Misting fans combine the airflow of a traditional fan with the cooling effect of a gentle mist, enabling you to enjoy the outdoors in ultimate comfort.

Fans that oscillate can be set to remain in a single position or rotate back and forth to cover a larger area. Have multiple speed settings, so you can choose how much airflow you need.

Suitable to use in restaurants, zoo, farms, stadiums, recreation parks, camps, etc.

  • Misting fans combine the airflow of a traditional fan with the cooling effect of a gentle mist, enabling you to enjoy the outdoors in ultimate comfort
  • Fans that oscillate can be set to remain in a single position or rotate back and forth to cover a larger area
  • Have multiple speed settings, so you can choose how much airflow you need
  • Suitable to use in restaurants, zoos, farms, stadiums, recreation parks, camps, etc.
Download Catalogue

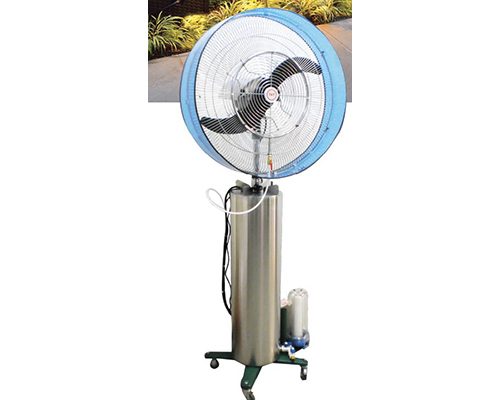

TAT 26″ Mist Stand Fan

TAT 26″ Mist Fan is of heavy duty industrial type comes complete with a stainless steel tank, a stainless steel mist ring holder with 4 nozzles, a mini ball valve, a frame (acrylic), a booster pump with filter and a motor cover (stainless steel).

Power: 130W -230W
Voltage: 230V/50Hz
Fan Blade: 26″ Die-Cast Aluminium
Air Delivery: 12,300 m3/hr
Wire Element: Copper
Speed: 1,400 r/min (3 Speed Selector Switch)
Nozzles: 0.20 mm (Orifice Diameter)
Pump Pressure: 135 psi
Tank Capacity: 40 Liter (4 hours use)
Frame (Colour): Tinted Blue or Tinted Brown

TAT 26″ Mist Wall Fan

TAT 26″ Mist Fan is of heavy duty industrial type comes complete with a stainless steel mist ring holder with 4 nozzles, a mini ball valve, a frame (acrylic) and a motor cover (stainless steel).

Power: 130W -230W
Voltage: 230V/50Hz
Fan Blade: 26″ Die-Cast Aluminium
Air Delivery: 12,300 m3/hr
Wire Element: Copper
Speed: 1,400 r/min (3 Speed Selector Switch)
Nozzles: 0.15 mm (Orifice Diameter)

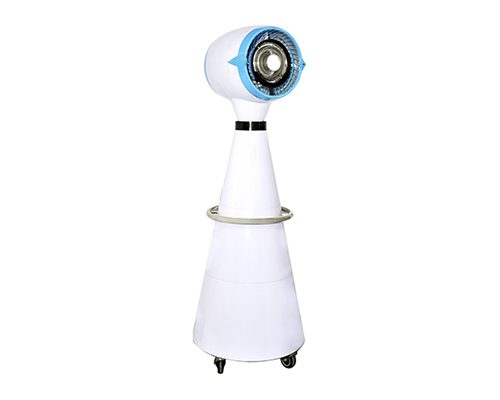

Pressure Type Portable Mist Fan

Model A-4PT is a pressure type portable mist fan with a unique cone-shaped design that contains its motors, wires and pipes, which contribute to its aesthetic outlook. Besides its excellent performance, it is of IP 54 standard which allows placing it outdoor be it rain or shine.

Model: A-4PT
Power (W) : 340
Vol./Freq. (V/Hz) : 220/50
Air Flow(m³/hr) : 2450
Noise (dB) : ≤69
Water Tank Capacity (L) : 94
Water Consumption (L/h) : 9-12
Effective Area (m²) : 95
Oscillating Angle : 90˚
Protection Level : IP 54
